Description

The most powerful German naval gun of World War I. Used on the Baden class battleships, which were completed too late to participate in the Battle of Jutland (Skagerrak) and saw little action during the rest of the war.

Those guns planned for the uncompleted battleships Sachsen and Württemberg were instead used on the Western Front where they were known as "Max" or "Lange Max" (Long Max). Coast Defense Battery Deutschland was equipped with four of these guns and Battery Pommern had one more. The Pommern battery, located at Leugenboom in Belgium, is perhaps best known for firing about 500 rounds between June 1917 and October 1918 at ranges of up to about 48,000 yards (44,000 m), including many at Allied positions in and around Dunkirk (Dunkerque). One gun was greatly altered and became the long range "Paris Gun."

The naval mountings for these guns used electric pumps to drive hydraulic elevation gear while the training was all electric. These guns also had hydraulically worked shell hoists, rammers and breeches.

Constructed from shrunk on tubes and hoops and used a Krupp horizontal sliding wedge breech block.

Gun Characteristics

Designation 38 cm/45 (14.96") SK L/45
Ship Class Used On Ersatz Yorck and Baden Classes
Date Of Design 1913
Date In Service 1916
Gun Weight about 176,370 lbs. (80,000 kg) 1
Gun Length oa 673 in (17.100 m)
Bore Length 634.3 in (16.112 m)
Rifling Length 544 in (13.816 m)
Grooves 2 (100) 0.118 in deep x 0.236 in (3 mm x 6 mm)
Lands 2 0.236 in (6 mm)
Twist Uniform RH 1 in 30
Chamber Volume 16,482 in3 (270 dm3)
Rate Of Fire 2.5 rounds per minute 3
  • ^For an interesting comparison of British and German guns as seen by British ordnance personnel, see the extract from "Progress in Gunnery Material, 1921" ADM 186/251 on the British 15"/42 (38.1 cm) Mark I datapage.
  • ^2.12.2

    Rifling dimensions above from "The German Defenses on the Coast of Belgium" and appear to be actual measurements. "Naval Weapons of World War One" gives different values as follows:

    At start At muzzle
    Grooves (100) 0.150 in (3.80 mm) D x 3.05 in (7.74 mm) W 0.226 in (5.74 mm) W
    Lands 0.165 in (4.20 mm) 0.244 in (6.20 mm)
  • ^

    Post-war loading tests by the British on Baden found that it took only 23 seconds from the time the guns fired until they were ready to fire again, compared to 36 seconds for the 15 inch (38.1 cm) guns on Queen Elizabeth.

    According to Norman Friedman in "Naval Weapons of World War One":

    "The difference included a much faster cycle for firing, recoil, runout and return to loading position (2.5 seconds vs. 6 seconds) . . . Also, the Queen Elizabeth required a much longer time (5 seconds vs. 1.5 seconds) to open the breech and a similarly long time to close it because it used a long-arm mechanism."

    The British, thanks to their any angle loading, theoretically did not need to depress the guns to reload, and their 36 second cycle time did not include any time for it, while the German cycle time included 5.5 seconds for lowering and elevating the gun back to firing position. However, the gun sights on the German turrets were not directly connected to the gun barrels, which meant that they could remain on target while the guns were lowered to be reloaded.

  • The gun at Battery Pommern battery was Krupp No. 15 L. The four guns at Battery Deutschland were Krupp No. 9 L, No. 35 L, No. 36 L and No. 41 L.

Ammunition

Type Cartridge - Bag
Projectile Types and Weights 1a 2a 3a Ship Projectiles
   APC L/3,5 4a 5a: 1,653 lbs. (750 kg)
   HE L/4,1 base fuze 4a: 1,653 lbs. (750 kg)

Coastal Artillery Projectiles
   Coastal HE L/5,4 base fuze - 1,638 lbs. (743 kg) 6a
   Coastal HE L/5,4 base and nose fuze - 1,638 lbs. (743 kg) 6a
   Coastal Light HE L/4,1 - 881 lbs. (400 kg)
   Coastal Shrapnel L/3,6 - 1,654 lbs. 750 kg)

Bursting Charge APC L/3,5 - about 55 lbs. (25 kg) TNT
HE L/4,1 - 147.5 lbs. (66.85 kg) TNT
Coastal HE L/5,4 base fuze - 137.5 lbs. (62.36 kg) TNT
Coastal HE L/5,4 nose and base fuze - 146.5 lbs. (66.5 kg) TNT
Coastal Light HE L/4,1 - 68.7 lbs. (31.18 kg) TNT
Coastal Shrapnel L/3,6 - 4,525 spherical bullets weighing 339.5 lbs. (154.0 kg)
Projectile Length APC L/3,5 - about 52.4 in (133 cm)
HE L/4,1 - 61.0 in (156 cm)
Coastal HE L/5,4 base fuze - 81.0 in (205.7 cm)
Coastal HE L/5,4 base and nose fuze - 81.0 in (205.7 cm)
Coastal HE L/4,1 - 60.75 in (154.3 cm)
Coastal Shrapnel L/3,6 - 58.35 in (148.2 cm)
Propellant Charge 7a Ships 8a
   403.4 lbs. (183 kg) RP C/12 (820 x 18/8)

Coastal Artillery 9a
   Full Charge - 403.4 lbs. (183 kg) RP C/12
   Reduced Charge - 264.6 lbs. (120 kg) RP C/12
   Special Full Charge - 451.9 lbs. (205 kg) RP C/12

Cartridge Case Type, Size and Empty Weight Brass, 380 x 856 mm, 125.6 lbs. (57.0 kg) 10a
Muzzle Velocity 11a APC L/3,5 - 2,625 fps (800 mps)
HE L/4,1 - 2,625 fps (800 mps)
Coastal HE L/5,4 base fuze - 2,625 fps (800 mps)
Coastal HE L/5,4 base and nose fuze - 2,625 fps (800 mps)
Coastal Light HE L/4,1 - 3,412 fps (1,040 mps)
Shrapnel L/3,6 - N/A 12a
Working Pressure 20.0 tons/in2 (3,150 kg/cm2)
Approximate Barrel Life 300 rounds
Ammunition stowage per gun Baden - 90 rounds 13a
Ersatz Yorck - 80 rounds
  • ^
    Actual Projectile designations
    APC L/3,5 38 cm Psgr. L/3,5

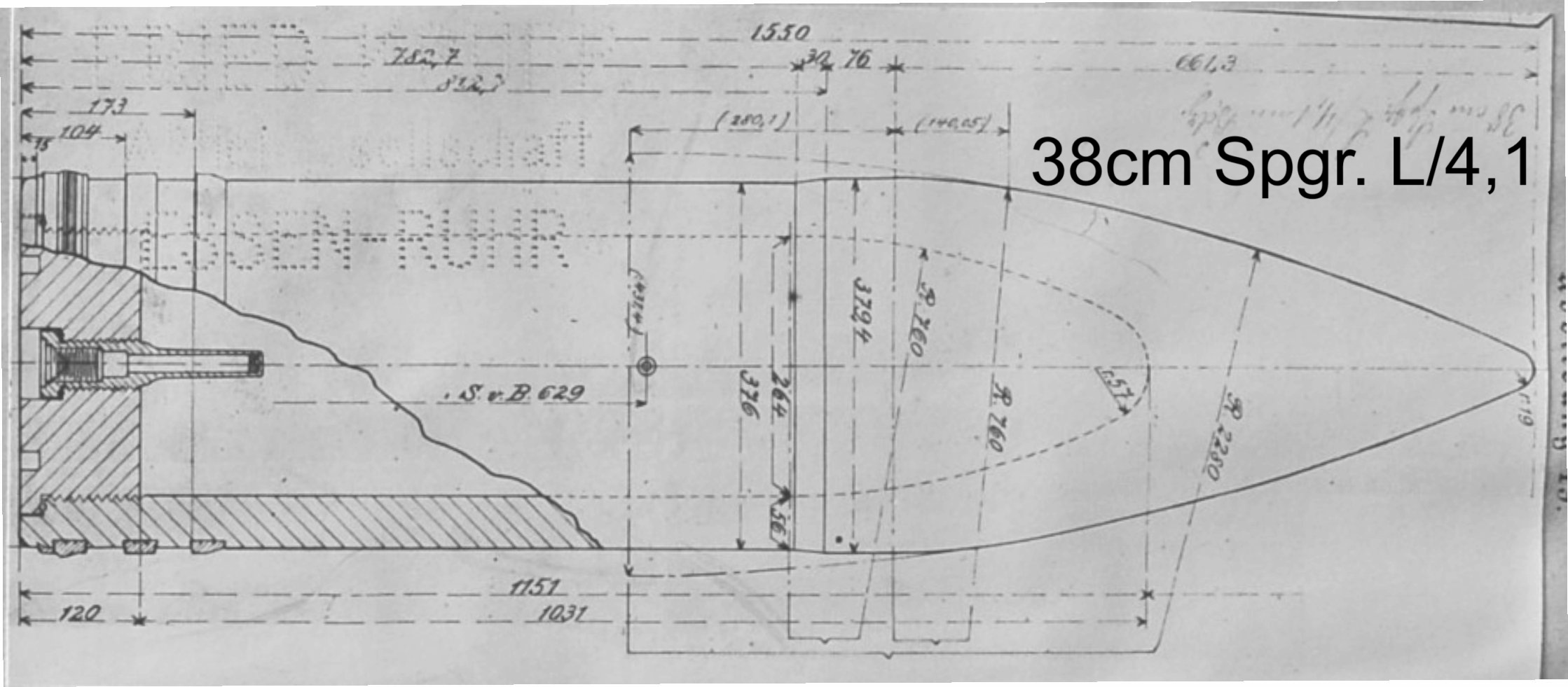

    HE L/4,1 base fuze 38 cm Spgr. L/4,1 Bdz.
    Coastal HE L/5,4 base fuze 38 cm Spgr. L/5,4 m. Bdz. (m.Hb)
    Coastal HE L/5,4 base and nose fuze 38 cm Spgr. L/5,4 m. Bdz. u. Kz. (m.Hb)
    Coastal Light HE L/4,1 Leichte 38 cm Spgr. L/4,1 m. Bdz. u. Kz. (m.Hb)
    Coastal Shrapnel L/3,6 38 cm Stahlschrapnel L/3,6
  • ^In "The German Defenses on the Coast of Belgium" the author notes another HE shell of 754 lbs. (342 kg) with a range of 52,000 yards (48,000 m) but this seems to be the Coastal Light HE L/4,1.
  • ^There were other Coastal Artillery projectiles under development during the war which did not enter service, with one of these still surviving at the German Historical Museum in Berlin (Deutsches Historisches Museum).
  • ^4.14.2Both AP L/3,5 and HE L/4,1 had 3.86/4.0crh nose shapes.
  • ^A Note on Sources: Many English language references show the designation for the Psgr. (APC) projectile with a "(m.Hb)" suffix (projectile with ballistic cap). However, this suffix is not used in any German documentation for this projectile that I have found.
  • ^6.16.2The Coastal HE L/5,4 was produced both in a standard base-fuzed projectile and in a modified version with both nose and base fuzes. See sketches below.
  • ^These guns, like most large caliber German guns of this era, used a "fore charge" which was propellant in a double bag silk case and a "rear charge" which was propellant in a brass case. The brass case helped to seal the breech of the gun.
  • ^A Note on Sources: The propellant weight for ships stated in "Naval Weapons of World War One" is 277 kg (610.7 lbs.). This value is much too high, even if the 57.0 kg (125.6 lbs.) casing weight is subtracted out.
  • ^A Note on Sources: For Coastal Artillery, I have selected to use the propellant weights shown in the British post-war "Diagrams of the Great War" to be used in the above table as the weights are taken from examination of captured German munitions. This work says that Coastal Artillery had two different "Rear Charges" and three different "Forward Charges" as follows:

    Diagrams of the Great War
    Propellant for 38 cm Coastal Artillery
    ID Number Charge Description
    1 Rear Charge of 191.8 lbs. (87.0 kg) RP C/12 (820 x 18/8)
    2 Rear Charge of 132.3 lbs. (60.0 kg) RP C/12 (410 x 18/8)
    3 Forward Charge of 211.6 lbs. (96 kg) RP C/12 (820 x 18/8)
    4 Forward Charge of 132.3 lbs. (60 kg) RP C/12 (820 x 18/8)
    5 Forward Charge of 260.1 lbs. (118 kg) RP C/12 (1150 x 18/8)

    Both Rear Charges used the same casing.

       Normal Full Charge - ID Numbers 1 and 3 - 403.4 lbs. (183 kg) RP C/12 *
       Reduced Charges - ID Numbers 2 and 4 - 264.6 lbs. (120 kg) RP C/12
       Special Full Charge - ID Numbers 1 and 5 - 451.9 lbs. (205 kg) RP C/12

       * From other sources, this also appears to be the standard full charge for ships.

    An alternative loading of the ID Number 2 Rear Charge was two bundles of RP C/00 (410 x 17/7) wrapped with a bundle of RP C/00 (820 x 17/7) with the total propellant weight being 132.3 lbs. (60 kg). This was apparently to use up existing stocks of the older propellant.

    This work also lists small trim charges of 2.2, 4.4, 8.8 and 17.6 lbs. (1, 2, 4 and 8 kg) of RP C/12 all in silk bags.

    The reference "The German Defenses on the Coast of Belgium" says that there were three charges used for coastal guns, the "Hutzenkartasch" (Hülsenkartusche or Rear) charge and two different "Vorkartasche" (Vorkartusche or Fore) charges. These appear to be a sub-set of the ones listed above, specifically ID Numbers 1, 3 and 5, but with slightly different weights. This work states that there were two propellant loads used for coastal artillery:

       ID Numbers 1 and 3 - 403.4 lbs. (183.0 kg)
       ID Numbers 1, 3 and 5 - 663.6 lbs. (301.0 kg)

    This last loading has one rear and two fore charges, a combination which would not fit into the chamber of the gun. The more likely combination would be ID Numbers 1 and 5, the "Special Full Charge" described above.

  • ^The case weight given above includes the case, lid and other non-propellant items.
  • ^The original muzzle velocity was 2,920 fps (890 mps) but dispersion was unacceptable at this velocity.
  • ^The Shrapnel projectile was only fired with reduced charges.
  • ^Outfit for the Baden class was 60 APC and 30 HE per gun.

Development of the Psgr 38 cm L3,5

This section is the work of delcyros who researched the development of the German Psgr. 38 cm L/3,5 projectile.

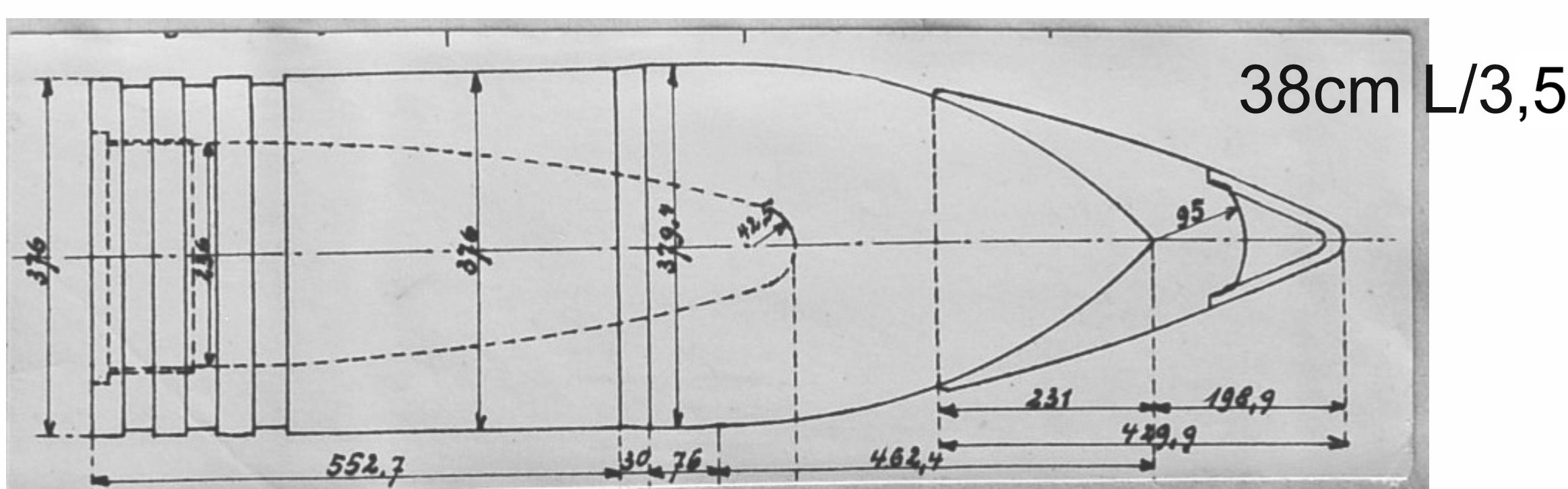

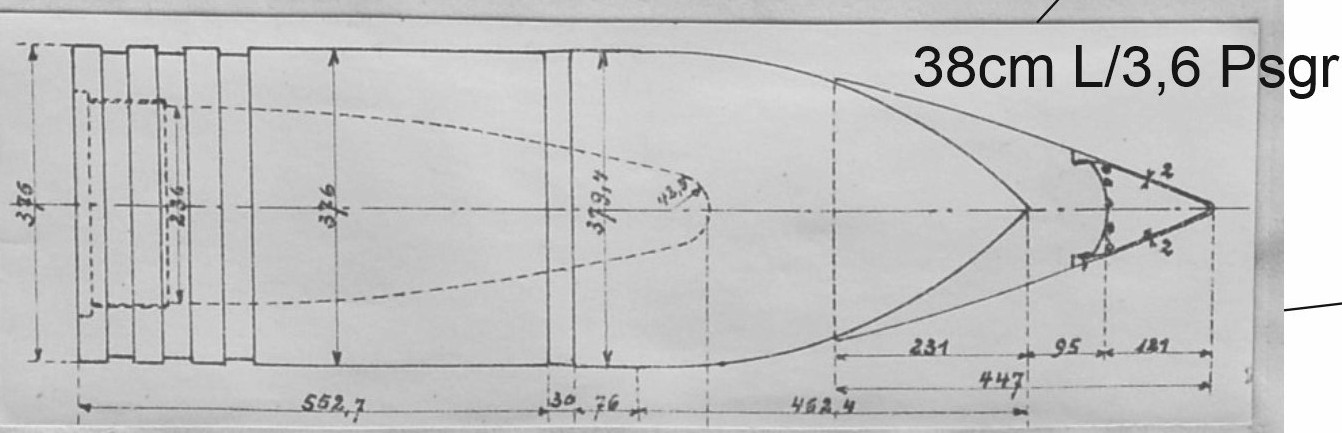

The adjacent sketch shows scale drawings of German World War I armor piercing projectiles (Psgr.) for the major cannons. All of these had an AP cap contour equal to 6.0crh, but with differently sized meplats. The projectile nose body of the Psgr. 28.3cm and 30.5cm was 2.0 crh, while the Psgr. 38 cm had a somewhat blunter, 1.7 crh projectile nose under the cap. Notice also in these sketches that the AP cap and windscreen had a different shape than the earlier projectiles. The Psgr. 28.3 cm L/3.2 and 30.5 cm L/3.4 projectiles were required to and capable of penetrating plates of 0.8 Thickness/Diameter (T/D) in a condition fit to burst when striking KC armor at 20 deg obliquity. This requirement existed in addition to the 1.0 T/D at normal and 0.5 T/D at 30 degrees imposed upon them. For the 38 cm L/3.5 and 35 cm L/3.6 (intended for the unfinished Mackensen class battlecruisers) the corresponding requirement for the 35 cm L/3.6 projectile was to penetrate a 280 mm KC plate and for the the 38 cm L/3.5 to penetrate a 300 mm KC plate at a 20 degree obliquity with the actual penetration velocities realized ranging between 582 and 607 mps.

However, unlike the performance of the smaller projectiles, the original design of the Psgr. 38 cm did not quite meet the 20 degree requirement. This initial prototype Psgr. 38 cm was a L/3.4 projectile which had a design very similar to the earlier Psgr. 30.5 cm, but had a minimally larger meplat. Various iterations of this projectile were tested, but they all broke up when striking a 300 mm KC plate at 15 degrees. As a result of these failures, the old design was abandoned and a new prototype was designed. This version had a blunter nose and a thicker AP cap but no windscreen. These projectiles, despite being somewhat lighter than the first prototype, all penetrated intact at a 15 degrees striking angle. With this success, a final design iteration added a windscreen on top of the thick AP cap in order to improve range and striking velocity. However, a planned set of tests at 20 degrees was not executed due to the end of hostilities.

There was no problem foreseen for meeting these requirements for this new design, as these projectiles had successfully penetrated at 15 degrees with a large excess velocity, so much so that they had to be dug out several kilometers behind the test plates. However, the burster cavity was frequently damaged, starting from the area of the upper driving band groove. This was exactly the same experience that the British had in the early 1920s with their improved 15 inch (38.1 cm) Mark Va ("Greenboy"), of which a majority successfully penetrated a 10 inch (25.4 cm) plate at 20 degrees and a few penetrated in a condition fit to burst a 12 inch (30.5 cm) plate at a 20 degree obliquity. The British shells which passed this raised proof value were designated as "Superproof" and were painted with a blue band. In both nations, the penetration specifications imposed on the 15 inch (38.1 cm) and 38 cm projectiles were very challenging and difficult to meet.

The real outlier here was the older German Psgr. 30.5 cm L/3.4, which was capable of meeting the 15 inch (38.1 cm) APC Mark Va regular proof specification of penetrating 10 inches (25.4 cm) at 20 deg, yet this projectile was considerably smaller and lighter than the British 15 inch (38.1 cm) projectile. Curiously, the same Psgr. 30.5 cm projectile was also about as good as the Psgr. 38 cm L/3.5 in penetrating thick KC armor at normal inclinations (0 degrees). Tests against an experimental 450 mm KC plate found little difference between the performances of the Psgr. 30.5 cm and 38 cm projectiles. One of the two 30.5 cm projectiles which managed to completely penetrate the plate also stayed intact in a condition fit to burst.

Data extracted from BAMA RM6-3347 "Entwicklung unser Marineartillerie 1913-1920. Volume V (Issue II. "Gschosse")", originally classified "Geheim!" (SECRET), issued by the Reichswehrministerium, Marineleitung (Berlin 1923), p.3-15.

Range

Range with 1,653 lbs. (750 kg) AP
Elevation Distance
16 Degrees 22,310 yards (20,400 m)
20 degrees 25,370 yards (23,200 m)
Maximum Range for Coastal Artillery Batteries
Projectile Distance
APC L/3,5 42,000 yards (38,400 m)
HE L/4,1 base fuze 37,400 yards (34,200 m)
Coastal HE L/5,4 base fuze 42,320 yards (38,700 m)
Coastal HE L/5,4 base and nose fuze 42,320 yards (38,700 m)
Coastal Light HE L/4,1 51,950 yards (47,500 m)
Coastal Shrapnel L/3,6 24,720 yards (22,600 m) 1b
  • ^Coastal Shrapnel was fired only with reduced charges.

Armor Penetration

Armor Penetration with APC L/3,5
Range Side Armor Deck Armor
10,936 yards (10,000 m) 15.35 in (390 mm) ---
13,670 yards (12,500 m) 13.78 in (350 mm) ---
21,872 yards (20,000 m) 1c 10.43 in (265 mm) ---
27,340 yards (25,000 m) 8.66 in (220 mm) ---
  • ^There is evidence to suggest that these guns achieved penetrations of 13.23 in (336 mm) at 21,872 yards (20,000 m) against World War I-era armor.
  • The above information is from "German Capital Ships of World War Two" and is derived from trials conducted in 1938 when these guns were compared against the 38 cm guns intended for the Bismarck class battleships.
Armor Penetration with APC L/3,5 1d
Range Side Armor Deck Armor
9,510 yards (8,700 m) 14.0 in (356 mm) ---
10,280 yards (9,400 m) 13.5 in (343 mm) ---
  • ^The penetration in this table is for intact penetration in a condition fit to burst after striking at a 30 degree obliquity (60 degrees per the German definition) against improved quality KC armor of the World War I era and not against the original, 1890´s KC/a.
  • The above information is from "M.D.V. 352 Heft 09."

Mount/Turret Data

Designation Two-gun Turrets 1e
   Baden 2e (4) and Bayern (4): DRH LC/1913
   Württemberg (4), Sachsen (4) and Ersatz Yorck (4): DRH LC/1914
Weight This data is only for Bayern, other ships may be different.
   A: 853.7 tons (867,440 kg)
   B: 856.1 tons (869,880 kg)
   C: 853.3 tons (866,950 kg)
   D: 836.8 tons (850,240 kg)
Elevation 3e Baden (as completed): -8 / +16.0 degrees
Bayern (as completed ): -5 / +20.0 degrees
Battery Deutschland reportedly had three BSG mountings capable of +45 degrees and one BSG mounting capable of +55 degrees
Battery Pommern had one electrically powered BSG mounting capable of 45° elevation and 157° traverse that was centered on Dunkirk 4e
Elevation Rate 5 degrees per second
Train About +150 / -150 degrees
Train Rate 3 degrees per second
Gun recoil 49 in (125 cm)
Loading Angle 2.5 degrees
  • ^Typical of German designs, these turrets ran on ball races containing 144 steel ball bearings of about 6.5 inches (16.5 cm) in diameter. Roller bearing ring diameter was 28.7 feet (8.75 m).
  • ^A British post-war analysis of the mountings on Baden criticized them for their lack of flash protection, but this seems overstated. The German use of enclosing all charges in brass greatly reduced the risk of flash igniting the charges. Thus they did not need the elaborate anti-flash fittings as found in British post-Jutland designs. The analysis noted that the German turrets were less foolproof than British designs as there were places where mistakes could jam them. The British report further stated that there was "a remarkable absence of precautions against sabotage" which seems more of a curious indictment against British sailors than a criticism of the German design.
  • ^Elevation in Baden was not increased during the war. Any ship completed after Bayern would probably also have had an elevation range of -5 / +20 degrees.
  • ^The Pommern Battery required eight men to ram the projectiles. When the Germans abandoned this gun in 1918, the guncrew tried to disable it by firing a projectile into the concrete bulwark, in the hope that it would explode on the concrete and damage the cannon. This did not succeed as the projectile penetrated the concrete and only exploded some 875 yards (800 m) away.
  • Turrets were powered as much as possible with electric motors directly, with electrically powered hydraulics being used only for the elevating gear and for the hoists. Each turret had a machinery room directly below the turret, followed by a handling room. At the bottom of the stalk was a cartridge handling room which held 36 fore charges. Rear charges and additional fore charges were stored in the magazines. Cartridges were loaded onto a central hoist below the handling room while projectiles were loaded on the next deck below. Projectile hoists ran directly from the handling room to the gunhouse. Once in the gunhouse, the projectiles and cartridges were power rammed towards the rear of the turret onto powered loading cars which ran on rails across the turret. These cars could feed either gun, but normally the guns were loaded together. As the breech mechanism did not extend past the end of the gun, the breeches could be opened before the cars were in place, thus speeding the loading cycle. Shell and cartridges were loaded by a chain and telescoping rammer. The projectile was rammed first and then both propellant charges were rammed as a unit. The total length of both charges was 63 in (160 cm).
  • ADM 186/251 notes that the shell grabs and the foot grip plating used in the shell rooms were both very efficient and should be copied in future British designs. However, it also notes that the Auxiliary Loading Chamber was "both a poor and an elaborate arrangement." The Auxiliary Loading Chamber allowed an "alternate supply of six projectiles per gun to be sent to the gun-house by means of an electrically driven hoist. There is no ready means of replenishing the secondary loading compartment from the shell room."
  • Gun axes were 145.6 in (370 cm).
  • Armor thickness given in "Naval Weapons of World War One" by Norman Friedman
    Baden class Ersatz Yorck class
    Face 14.0 in (35 cm) 11.8 in (30 cm)
    Sides 9.8 in (25 cm)
    Rear 11.4 in (29 cm)
    Roof Flat 4.7 in (12 cm) 5.9 in (15 cm)
    Front 7.9 in (20 cm) 9.8 in (25 cm)
    Sides 4.7 in (12 cm)

Additional Pictures

Sources

"Big Gun Monitors: The History of the Design, Construction and Operation of the Royal Navy's Monitors" by Ian Buxton
"Jutland: An Analysis of the Fighting" by John Campbell
"De kust bezet 1914-1918" (The Occupied Coast 1914-1918) by Alex Deseyne
"Battleship Design and Development 1905-1945" and "Naval Weapons of World War One" both by Norman Friedman
"Große Kreuzer der Kaiserlichen Marine 1906 - 1918" by Axel Grießmer
"German Warships 1815-1945" by Erich Gröner
"The Big Gun: Battleship Main Armament 1860-1945" by Peter Hodges
"The German Defenses on the Coast of Belgium" by Lt. Col. H.W. Miller USA in "The Journal of the American Society of Mechanical Engineers" Vol. 42, No. 6, June 1920
"The Baden Trials" article by William Schleihauf in "Warship 2007"
"Die Geschichte der deutschen Schiffsartillerie" by Paul Schmalenbach
"German Warships of World War I" by John C. Taylor
"German Capital Ships of World War Two" by M.J. Whitley
---
ADM 186/251 (a copy is at Royal Navy Flag Officers 1904-1945)
"Diagrams of Great War - German Naval Guns; Shells & Explosives; Fuses & Exploders" by The Royal Laboratory Woolwich 1921-22
"M.D.V. 352 Heft 09" Vize Adm. Trotha, Der Organismus der Kaiserlichen Marine und der erste Weltkrieg, Berlin 1930, and has been tabulated by Vize Admiral Rogge there at p.75.
---
Special Help from Peter Lienau, Thorsten Wahl, Helen Peeters and Sven Brummack
