These were Elswick Pattern "C" and were used on armored cruisers. These guns were removed from the cruiser Pisa following her decommissioning in 1937. Two of them (or the Vickers Mark D which had similar performance) were then mounted on the pontoon GM216. It is possible that some of the remaining guns were used in coastal artillery batteries.

Twenty-four of these guns were still in service as of June 1940.

Construction is believed to have been 'A' tube, inner 'A' tube, wire winding for 75% of their length, 'B' tube and jacket.

Gun Characteristics

Designation 7.5"/45 (19.1 cm) Model 1908
Ship Class Used On San Marco Class
Date Of Design 1908
Date In Service 1910
Gun Weight 13.77 tons (14.99 mt)
Gun Length oa 350.6 in (8.905 m)
Bore Length 337.5 in (8.573 m)
Rifling Length N/A
Grooves N/A
Lands N/A
Twist N/A
Chamber Volume 1,313.6 in3 (69.24 dm3)
Rate Of Fire 2.6 rounds per minute


Type Bag
Projectile Types and Weights AP: 200.4 lbs. (90.9 kg)
Bursting Charge N/A
Projectile Length N/A
Propellant Charge about 71.2 lbs. (32.3 kg)
Muzzle Velocity 2,835 fps (864 mps)
Working Pressure N/A
Approximate Barrel Life N/A
Ammunition stowage per gun N/A


Range with 200.4 lbs. (90.9 kg) AP
Elevation Distance
25 degrees about 24,000 yards (22,000 m)

Mount/Turret Data

Designation Twin Turrets: San Marco (4)
Weight N/A
Elevation -7 / +25 degrees
Elevation Rate N/A
Train about +80 / -80 degrees
Train Rate N/A
Gun recoil N/A
Loading Angle N/A

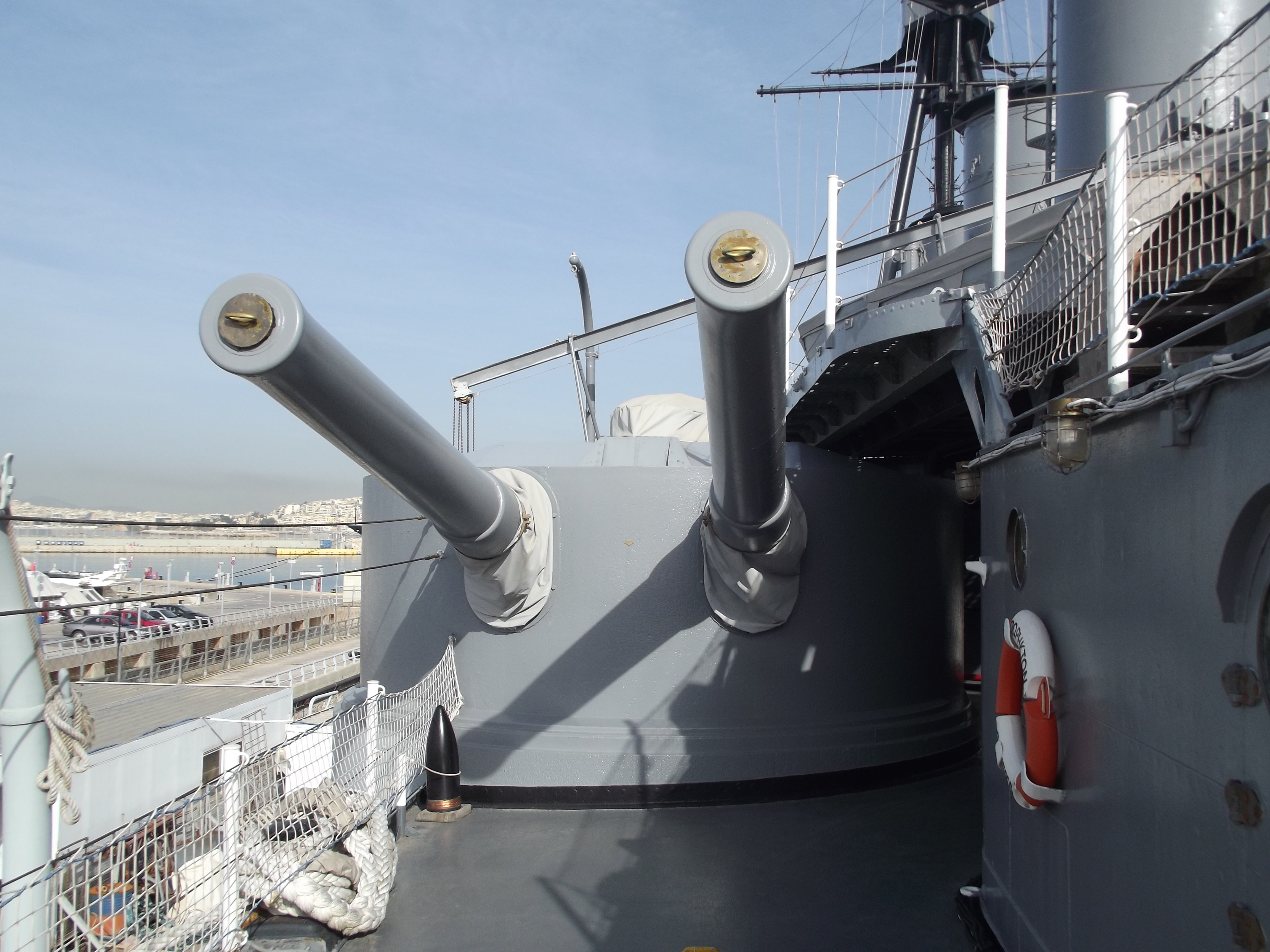

Additional Pictures


Data from:

  • "Naval Weapons of World War Two" by John Campbell
  • "Italian Warships of World War II" by Aldo Fraccaroli
